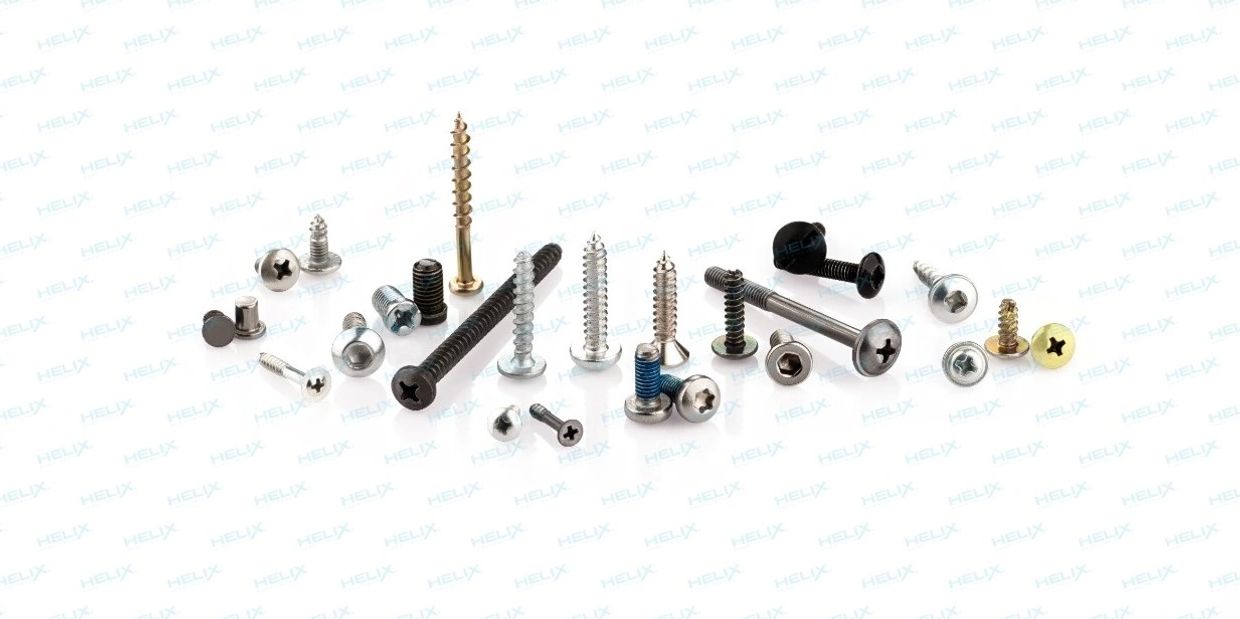

Customized screw
.jpeg/:/cr=t:10.58%25,l:0%25,w:100%25,h:78.84%25/rs=w:1209,h:605,cg:true)
Got a non-standard, off the catalogue screw? Got a Screw Drawing for specific application? We got the solution!
Head type:
CSK, PAN, Oval, Truss, Button, Cheese, Hex
Thread:
UNC, UNF, BSW, Inch, Metric, Tapping, Trilobular, PT, AB, B, ABT, BT, Type 17 etc.
Recess-Drive:
Phillips Robertson, Pozi, Slot, Torx (6-lobe), Square, Quadrex, Combination, Hex lobular, AllenKey
Coating:
Hexavalent Electroplating, Triavalent Electroplating, Galvanized, MagNi, Seal coat
Material Grade:
SAE 1008, SAE 1010, SAE 1018, SAE 1022, AISI 10B21, AISI 15B25, AISI 1040, SS 204, SS 304, Low Carbon Steel, Boron Steel, Medium Carbon Steel.
Standards followed:
ISO, DIN, JIS, UNI, ANSI, ASME, as per your drawing, client specific.
Test Certification:
Universal Testing Machine
Rockwell Hardness Test
Salt Spray Test
Wet Analysis, Chemical Composition
Packaging:
Corrugated Carton(Outer), Poly-Propylene Pack, LDPE Pack, Corrugated Box, Plastic Box, VCI pack, Loose bags, Piece packing
Application area:
Automobile, Machinery, Industrial fastening, Industrial Instruments, Electronic Appliances, Mechanical Tools, Interior and Exterior Hardware, Electric fittings, Toys, LED, Electric Switches and Switch Gears, Cooling Appliance and Devices, Contactors, Construction and Roofing, Electric Circuits/Breadboards, Calculators, DIY Solution.
*CE, RoHS compliant product available on request*
Saw Chipboard Screw SPAXX
Chipboard Screws are mainly used on particle board or chip board. They have wider and spiral threads that prevents cracking of wood. It is widely used in carpentry thereby replacing wood screw in furniture application.
Sizes Available:
M3.5, M4, M4.5, M5 and M6 | From 16mm to 100mm length
Head type:
CSK, PAN, Truss, HEX
Thread:
AB, B, ABT, BT
Recess:
Phillips Robertson, Pozi, Torx (6-lobe), Square, Quadrex, Combination, Hex lobular, Allen-Key
Standards followed:
DIN 7505 | IS 18508:2024
Application Area:
Furniture and Carpentry, DIY Wood Solution etc.

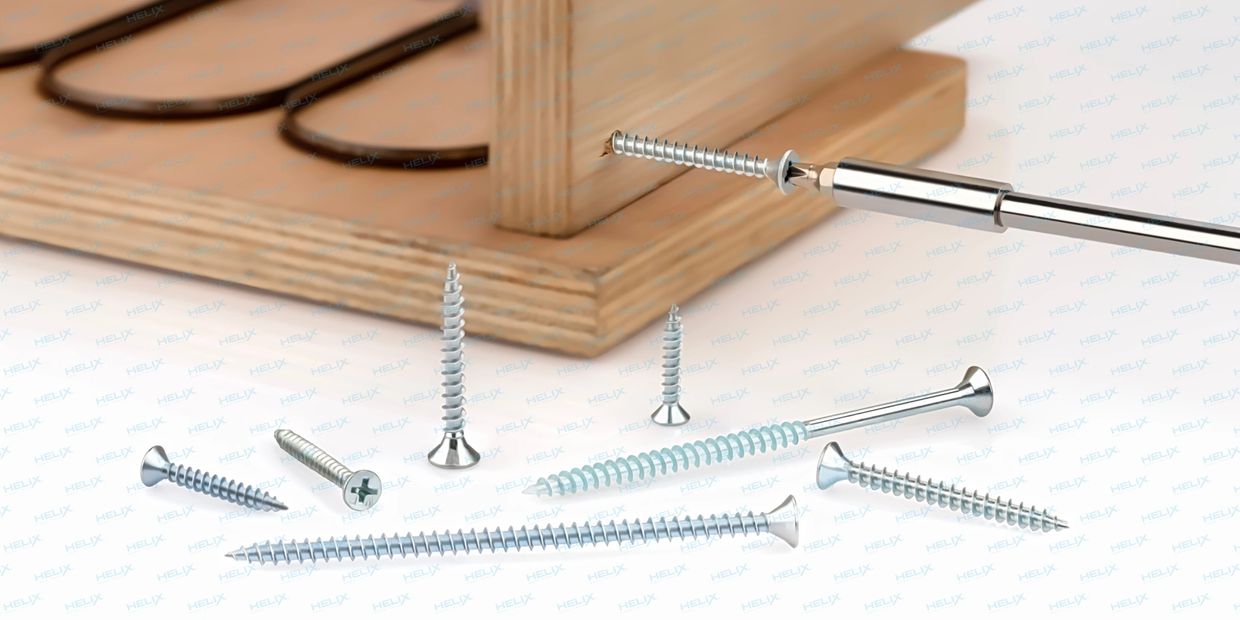

Chipboard Screw
Chipboard Screws are mainly used on particle board or chip board. They have wider and spiral threads that prevents cracking of wood. It is widely used in carpentry thereby replacing wood screw in furniture application.
Sizes Available:
M3.5, M4, M4.5, M5 and M6 | From 16mm to 100mm length
Head type:
CSK, PAN, Truss, HEX
Thread:
AB, B, ABT, BT
Recess:
Phillips Robertson, Pozi, Torx (6-lobe), Square, Quadrex, Combination, Hex lobular, AllenKey
Standards followed:
DIN 7505 | IS 18508:2024
Application Area:
Furniture and Carpentry, DIY Wood Solution etc.

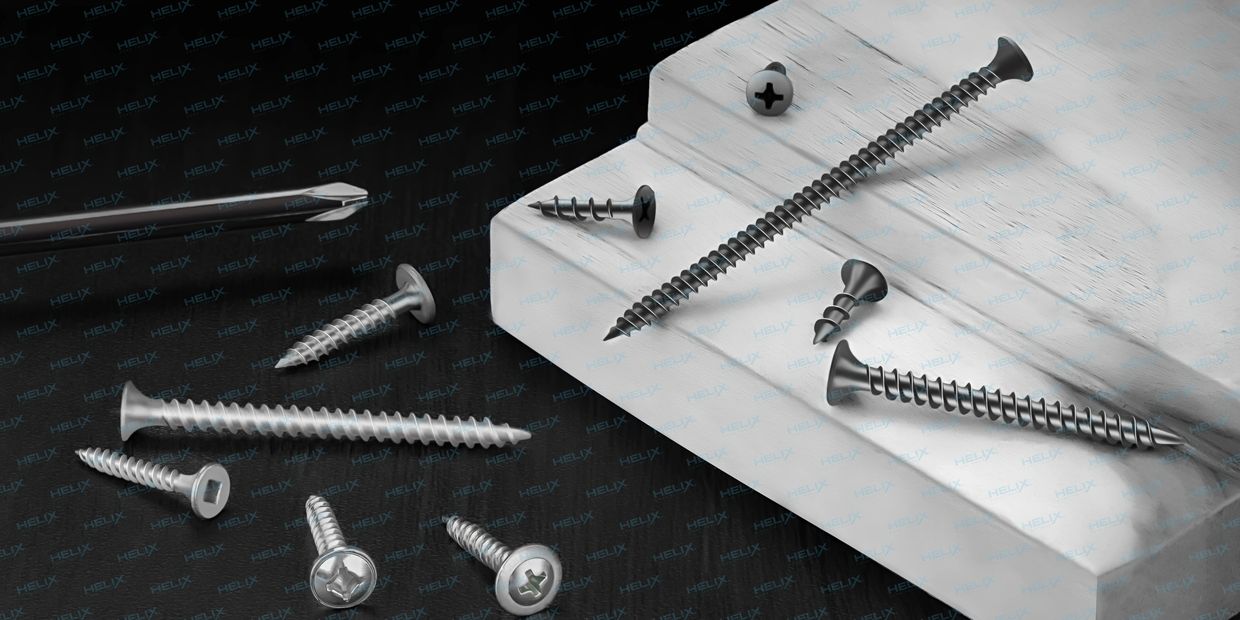

Drywall Screw
A Drywall Screw is a self-tapping screw with more angular threads and a sharp pointed tip. As the name suggests, It is widely used on gypsum or drywall boards, and even on thin metal sheets and wood. It is easy to identify with its typical phosphate-black coating. A dimpler is always recommended for proper fixing of this screw.
Sizes Available:
#6 (3.5mm), #7 (3.9mm), #8 (4.2mm), #10(4.8mm) | From 13mm to 100mm length
Head type:
CSK, PAN, Truss
Thread:
AB
Recess:
Phillips Robertson, Pozi, Torx (6-lobe), Square, Quadrex, Combination
Standards followed:
IS 18507:2024
Application Area:
Drywall, Gypsum board, P O P, Furniture and Carpentry, Hardware and Sanitary fittings, DIY Solution etc.

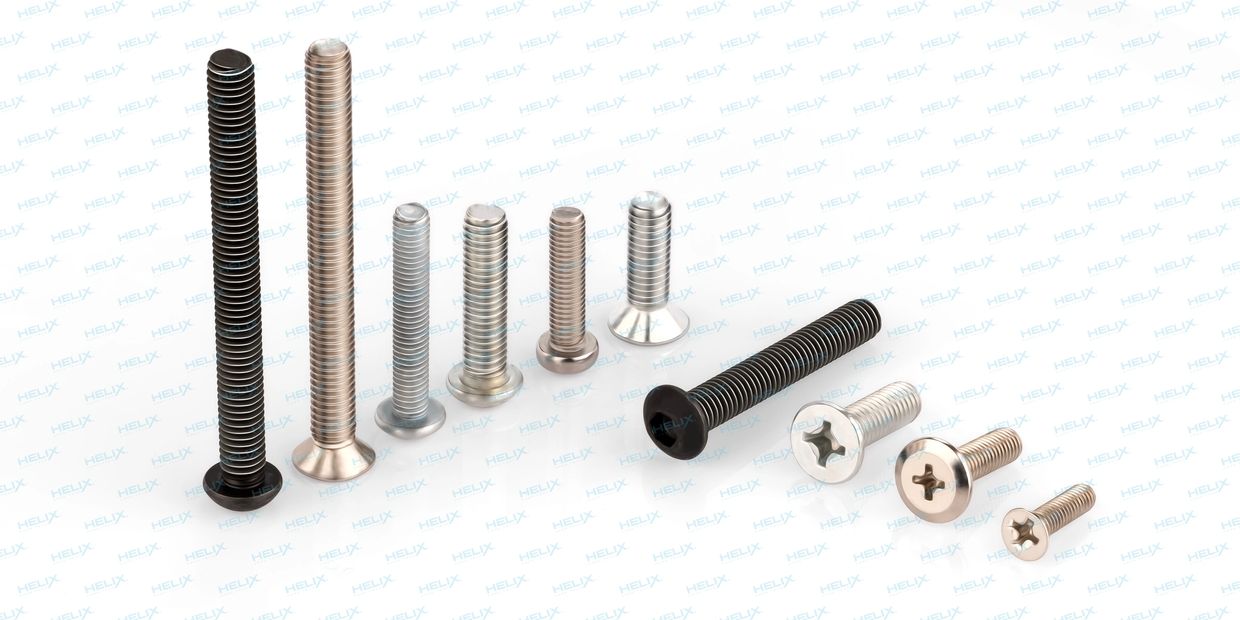

Machine Screw
Machine screws are slightly smaller than bolts; machine screws also tend to be designated as such if the first tightening of the fastened joint is accomplished by turning the head of the screw. With a bolt, the primary tightening procedure is typically performed by rotating the nut, holding the bolt through a hole.
Sizes Available:
Metric Series: M1.7, M2, M2.5, M3, M3.5, M4, M4.5, M5, M5.5, M6 and M8 | From 4mm to 100mm length
Inch Series: 3/16, 1/4 and 5/16 | From 4mm to 100mm length
*4g6g & 6g tolerance class*
Head type:
CSK, PAN, Truss, Button, Cheese
Thread:
UNC, UNF etc.
Recess:
Phillips Robertson, Pozi, Torx (6-lobe), Square, Quadrex, Combination, Hex lobular, AllenKey
Standards followed:
ISO-7380, ISO-7380 FL, ISO-10642, ISO-14583, ISO-14584, ISO-7045, ISO-7046-1, ISO-7046-2 etc.
Application area:
Automobile, Machinery, Household and Industrial Electronic Appliances, Mechanical Tools, Interior and Exterior Hardware, Electric fittings, Toys, DIY Solution.

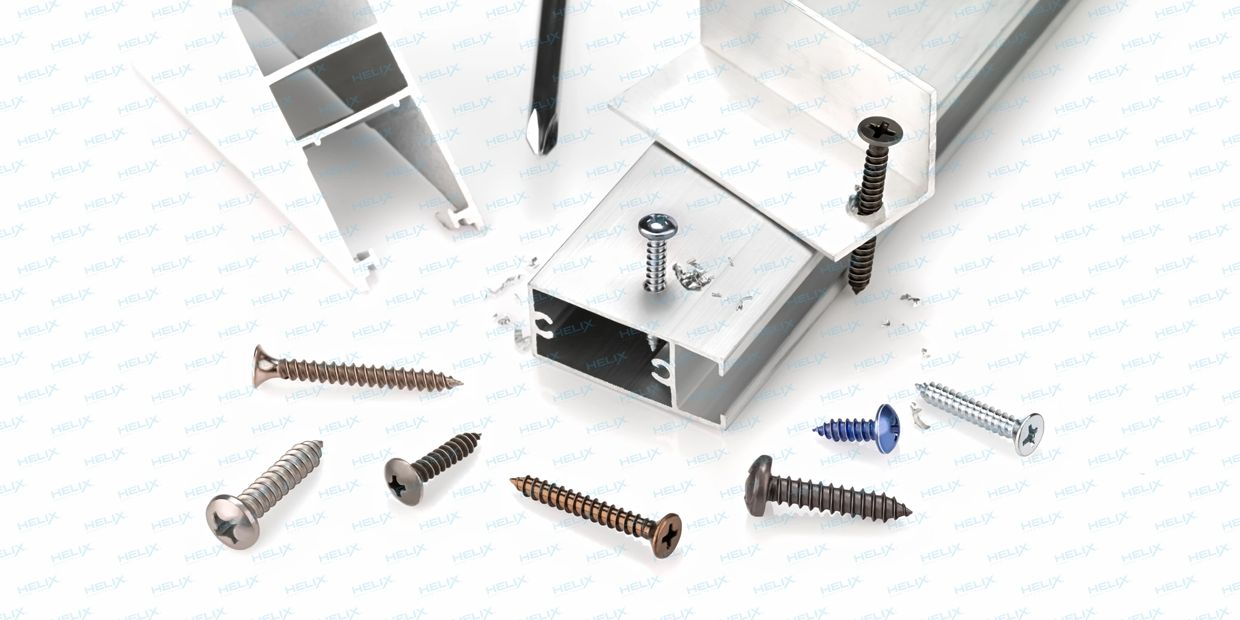

Self Tapping Screw
A Self-Tapping Screw can tap its own hole as it is driven into the softer material like plastics, thin metal sheets or wood. Whereas it needs a pilot hole if the material is much harder like thick steel sheets, hard plastics, or metal surfaces. It is widely used in carpentry work, aluminum channels, sheet metals and other basic diy solutions.
Sizes Available:
- Thread diameter range = #1 (1.7mm), #2 (2.0-2.2mm), #3 (2.6mm), #4 (2.9mm), #6 (3.5mm), #7 (3.9mm), #8 (4.2mm), #10(4.8mm), #12 (5.5mm)
- Screw Length = 4mm to 100mm
Head type:
CSK, PAN, Truss, Hex
Thread:
A, AB, B, ABT, BT
Recess:
Phillips Robertson, Pozi, Torx (6-lobe), Square, Quadrex, Combination, Hex lobular, AllenKey
Standards followed:
DIN 7981, DIN 7982, ISO 7049, ISO 7050, ISO 7046, CSN 21237, UNI 6955 etc.
Application Area:
Aluminium Section, Furniture and Carpentry, Hardware and Sanitary fittings, Electric switches and panel fittings, Plastic Joining, Toys, Household and Industrial Electronic Appliances, DIY Solution etc.

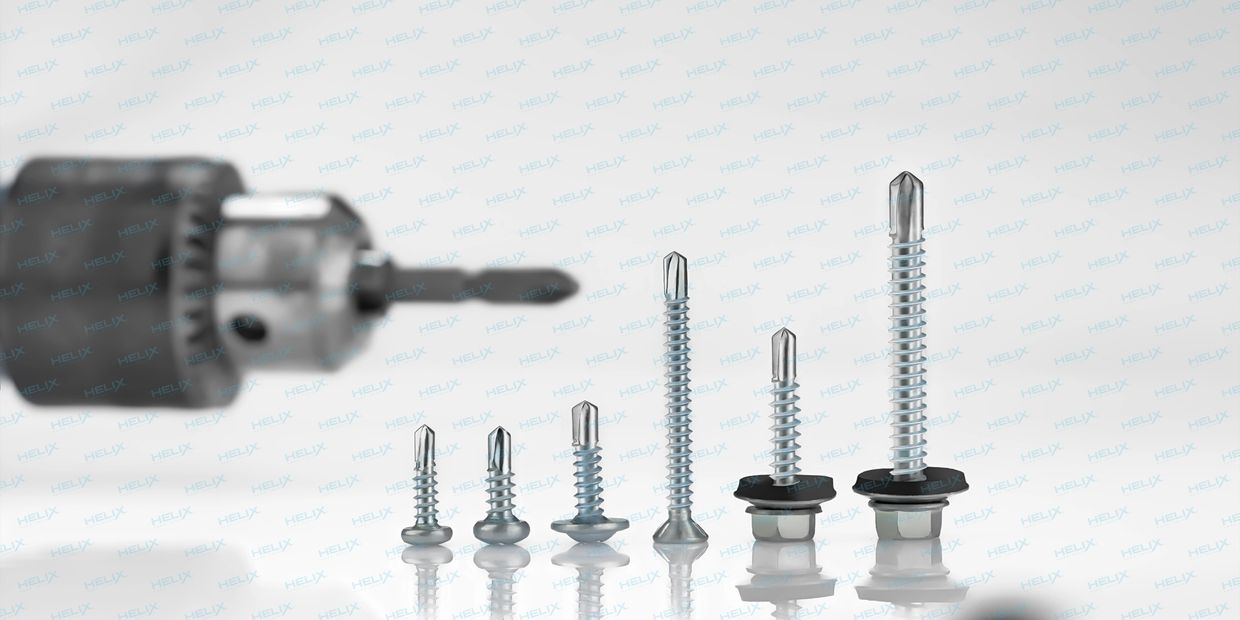

Self Drilling Screw
Self drilling screw are the screw that has a drill point. It drills its own hole and cuts/taps the threads thus, making it a time saver as no pilot hole is required to be drilled in prior.
Sizes Available:
#6 (3.5mm), #7 (3.9mm), #8 (4.2mm), #10(4.8mm), #12(5.5mm) | From 13mm to 100mm length
Head type:
CSK, PAN, Truss, Wafer, Hex, Hex Washer, Hex with EPDM Washer
Drill Point:
Long | Short
Recess:
Phillips Robertson, Hex
Application Area:
Roofing, Metal Pipes and Tubes, Aluminium Channel, Sheet Metal, Industrial Fitting, EV-Solar Panel fitting, Industrial fittings, DIY Solution etc.
